Pentair - Heater Parts - Minimax 75, 100

SELECT YOUR PART BELOW

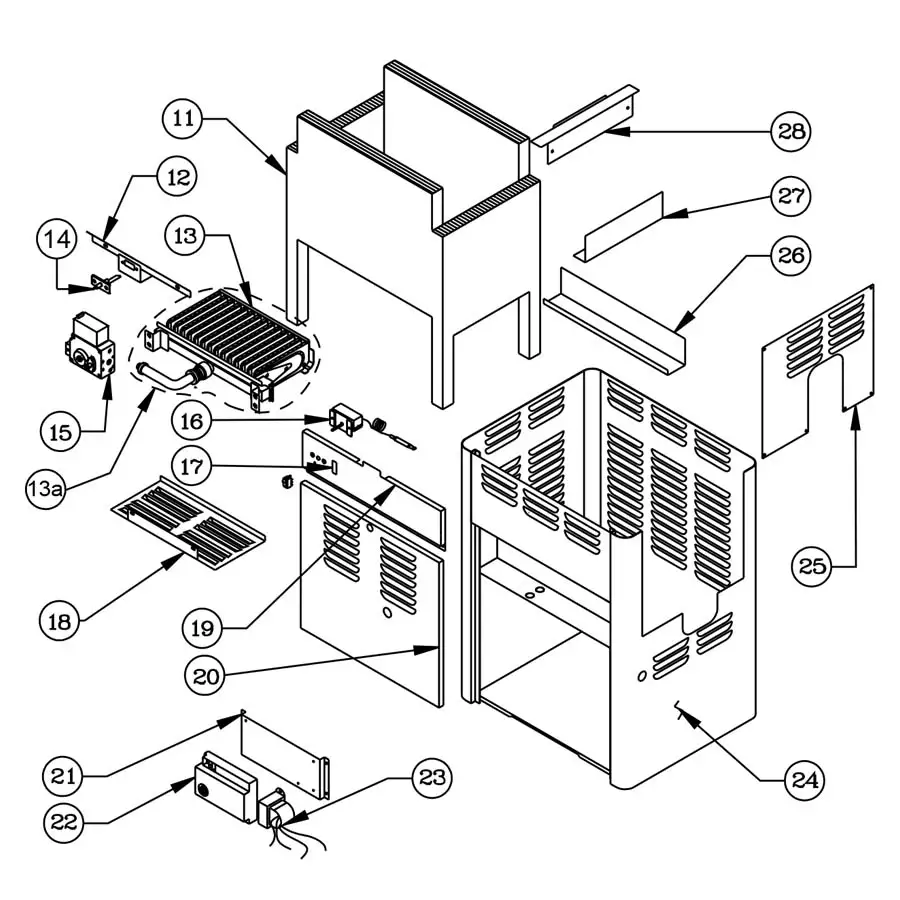

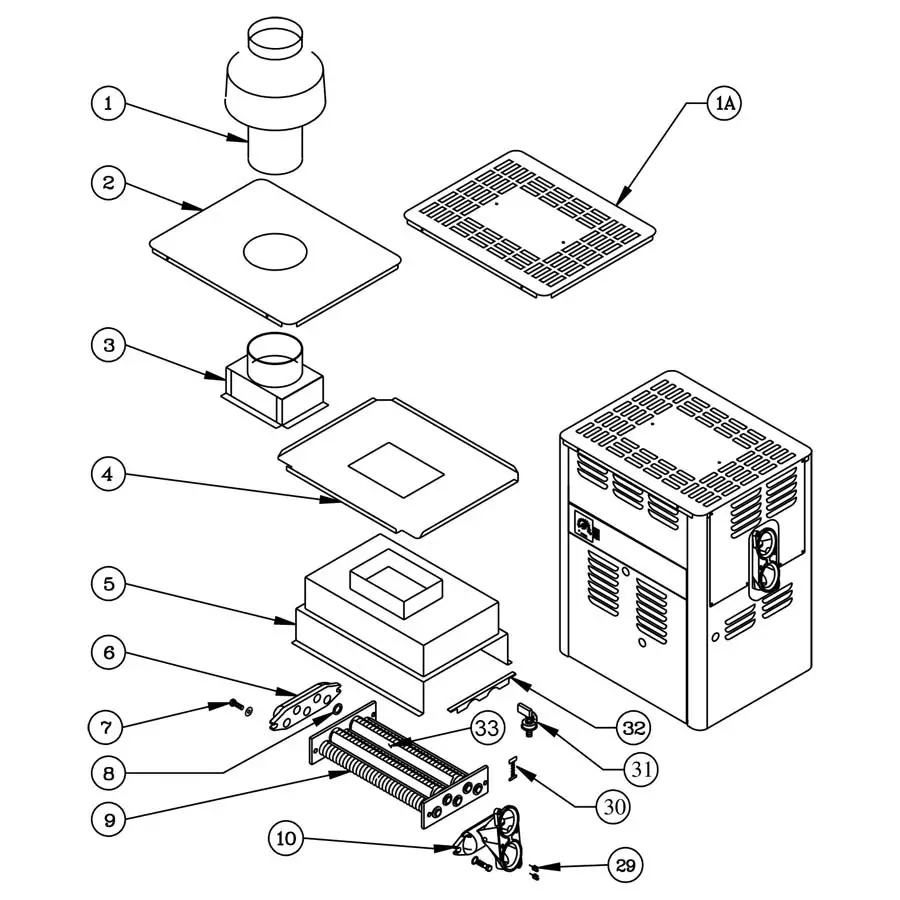

Below you'll find a consolidated list of the replacement parts for the Pentair Minimax 75 & 100.

Select A SKU To See Inventory

Please Note: Products might not be available at all locations.

Pentair - Heater Parts - Minimax 75, 100

  KeySKU / Part #NamePrice
  1APTS-471213ADAPT OUTDOOR ASY 100MX 188.99
  2PTS-471075TOP INDOOR 100 MMX 124.99
  4PTS-471069TOP INNSER 100 DS 91.99
  6PTS-471096HEAD RETURN DS 100 105.99
  7PTS-471200BOLT 3/8-16x3/4 HH STL 1.99
  8PTS-070951GASKET TUBE SEAL 1.99
  9PTS-471093HEAT EXCH DS 100 L/HEAD 707.99
  10PTS-471094HEAD MAIN BRNZ MACHED 339.99
  11PTS-471061INSULLATION FRONT 100 61.99
  11PTS-471062INSULLATION REAR 100 57.99
  11PTS-471063INSULLATION SIDE CMMN 43.99
  12PTS-471058BRKT IGN BRNTRY 100 MMX 51.99
  13PTS-471122BURNER 14 BLADE MNFLD N JETS BSI THERMTCH485.99
  13PTS-471136BURNER 14 BLADE MNFLD PR 485.99
  14PTS-471090ELECT DIR SPK IGN ASY 73.99
  15PTS-471088VLV & BRKT 100/75 N ASY 413.99
  15PTS-471089VLV & BRKT 100/75 P ASY 413.99
  15PTS-471436VALVE GAS NAT MV SIT/US 504.99
  15PTS-471435VALVE GAS PRO MV SIT/US 504.99
  16PTS-471431THERMOSTAT ELECT MX100 229.99
  17PTS-471128SWITCH ROCKER SPST DNA B1011C1121 LGN BLK10.99
  19PTS-471078PANEL CONTROL ASY 100 396.99
  20PTS-471067DOOR ASY 100 MMX 139.99
  22PTS-471091CONT IGN DIR SPK 395.99
  23PTS-471360XFMR 24VAC CH W/CIR BRKR 110.99
  25PTS-471071PANEL INSP PLT 100 MMX 30.99
  28PTS-471164BRACKETS HEATEXCH MMX100 33.99
  29PTS-071017HI LIMIT 150DEG SHUTOFF 68.99
  30PTS-471095ASSEMBLY FLOW VALVE DS 143.99
  31PTS-471097SWITCH PRESS 2 PSI 66.99
  32PTS-471064BAFFLE HOLD DOWN DS 100 14.99
  33PTS-471065BAFFLE 100 MMX 8.99
  NSPTS-075173THERMAL CUTOFF MMX 31.99
  NSPTS-471292PILOT MMX MV N Q379A1064 98.99
  NSPTS-471291PILOT MMX MV P Q379 Q379A107298.99
  NSPTS-071515PILOT GEN Q313A W/CLIP 159.99
  NSPTS-471083KIT QUICK FLANGE II THD 1-1/5 MMX 10080.99
  NSPTS-471201KIT WIRING 100MX MV 136.99
  NSPTS-471202KIT WIRING 100MX DSI 160.99
  NSPTS-470184KNOB T STAT MMXPLS 18.99
  NSPTS-470414KNOB STOPPER MMX PLS 10.99
  NSPTS-075459IGNITOR MV MMX PIEZO 29.99
  NSPTS-072136VALVE DRAIN 1/4 NPT 29.99
  NSPTS-471092CABLE HIVOLT IGN 100 MMX 34.99
  NSPTS-070544BUSHING 2IN 7.99
  NSPTS-471221BRKT PLT 100 MMX MV 20.99
  NSPTS-471138ROD FLOW VALVE MMX 100 23.99
  NSPTS-471139SPRING FLOW VALVE MMX100 10.99
  NSPTS-471140PLUG FLOW VALVE MMX 100 48.99
  NSPTS-471141PLUNGER FLO VALVE MMX100 8.99
  NSPTS-076618TBG PILOT 1/4"X18.5" AL 100 PM MODELS13.99
  NSPTS-075190BREAK AWAY FITTING 38644 9-18.99

A consolidated list of the replacement parts for the Pentair Minimax 75 & 100. If you're having trouble finding the parts you need, feel free to reach out to one of our representatives in the contact section below.
