Jandy/Zodiac - Heater Parts - Lite2 LG, LD Pool/Spa Heater (Discontinued, 2003 - 2009)
SELECT YOUR PART BELOW
Below you'll find a consolidated list of the replacement parts for the Jandy/Zodiac Lite2 LG, LD Pool/Spa Heater (Discontinued, 2003 - 2009).
Overall Inventory
| Central Warehouse | In Stock |
Please Note: Products might not be available at all locations.

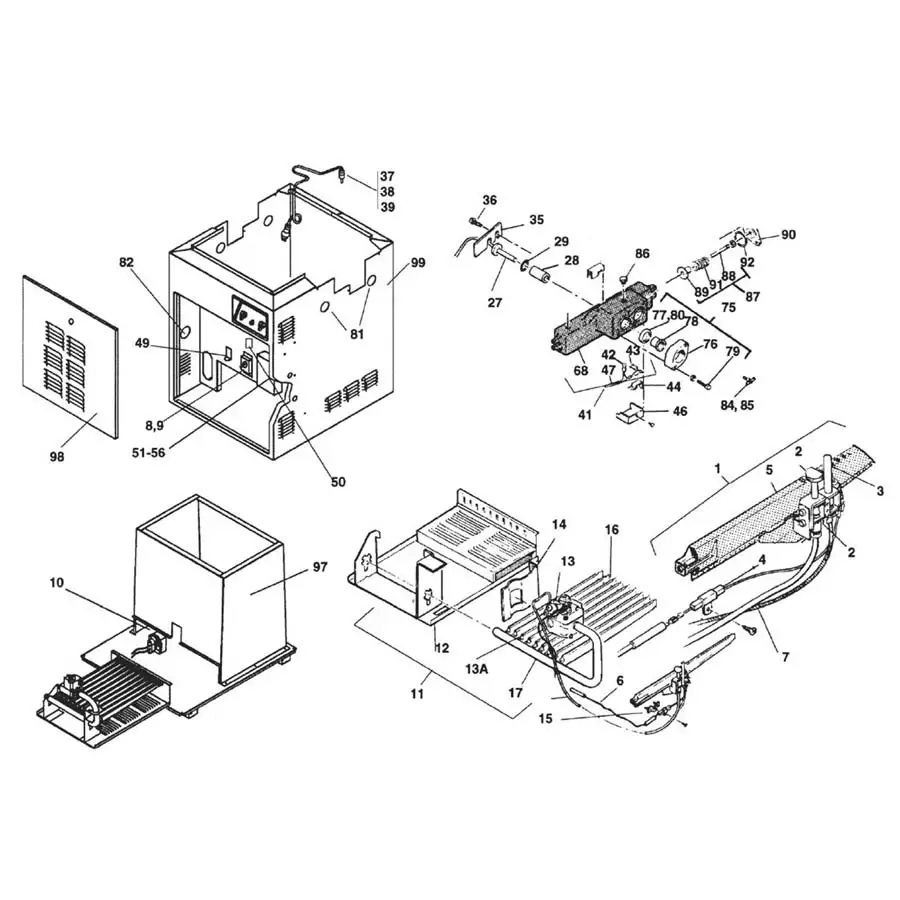

Jandy/Zodiac - Heater Parts - Lite2 LG, LD Pool/Spa Heater (Discontinued, 2003 - 2009)
| Key | SKU / Part # | Name | Price |
|---|---|---|---|
| 1 | PTS-R0099100 | Jandy Main Burner Pilot Assembly Natural | 308.99 |
| 1 | PTS-R0099200 | Jandy Main Burner Pilot Assembly LP | 308.99 |
| 2 | PTS-R0096700 | Jandy Pilot Burner, Natural 018, Replacement Kit | 235.99 |
| 2 | PTS-R0096600 | Jandy Pilot Burner, LP | 235.99 |
| 2A | PTS-R0323300 | Jandy Pilot Shield | 40.99 |
| 3 | PTS-W0036901 | Jandy Pilot Generator | 130.99 |
| 4 | PTS-R0011600 | Jandy Insulator Lead Assembly | 53.99 |
| 5 | PTS-10457500 | Jandy Burner, w/Pilot Bracket | 37.99 |
| 6 | PTS-R0099000 | Jandy High Voltage Lead Assembly | 56.99 |
| 7 | PTS-R0037000 | Jandy Pilot Tubing, Model All, LRZM | 27.99 |
| 8/9 | PTS-R0355900 | Jandy Piezo Lighter Assembly Pewter Replacement Kit. Model All, LRZM | 48.99 |
| 9 | PTS-R0446900 | Jandy Ignitor box, LD, All | 31.99 |
| 10 | PTS-R0317200 | Jandy Hot Surface Igniter Replacement Kit | 204.99 |
| NS | PTS-R0334200 | Jandy HSI shield - LD, All | 113.99 |
| NS | PTS-R0334300 | Jandy Flame Sensor, LD Replacement Kit | 196.99 |
| 11 | PTS-R0319505 | Jandy Burner Tray Assembly LP 400 | 2393.99 |
| 12 | PTS-R0317001 | Jandy Burner Tray, Shelf Only, 125 | 327.99 |
| 12 | PTS-R0317002 | Jandy Burner Tray Shelf Only, 175 | 335.99 |
| 12 | PTS-R0317003 | Jandy Burner Tray, Shelf Only, 250 | 346.99 |
| 12 | PTS-R0317004 | Jandy Burner Tray Shelf Only, 325 | 354.99 |
| 12 | PTS-R0317005 | Jandy Burner Tray, Shelf Only, 400 | 366.99 |
| 13 | PTS-R0096400 | Jandy Gas Valve, Natural | 657.99 |
| 13 | PTS-R0096900 | Jandy Gas Valve, LP | 657.99 |
| 13 | PTS-R0317100 | Jandy Gas Valve, Natural | 547.99 |
| 13 | PTS-R0319600 | Jandy Gas Valve, LP | 521.99 |
| 13A | PTS-L0032200 | Jandy Gas Orifice, Natural, 0'. - 3,000' | 4.99 |
| 13A | PTS-L0032900 | Jandy Gas Orifice, LP, 0' - 5,000' | 4.99 |
| 16 | PTS-R0469800 | Jandy Burner, Main, Model All, LRZE And LRZM | 34.99 |
| 17 | PTS-L0006400 | Jandy Gas Manifold, Laars Lite, 250 | 190.99 |
| 18 | PTS-R0058200 | Jandy Temperature Control | 323.99 |
| 21 | PTS-R0099800 | Jandy On-Off Switch, Model All, LRZM | 41.99 |
| 23 | PTS-R0011700 | Jandy Temp Control Assembly Replacement Kit | 736.99 |
| NS | PTS-R0325900 | Jandy Wire harness set, complete Replacement Kit, All | 201.99 |
| 26 | PTS-R0099900 | Jandy Knob, Single Bar | 16.99 |
| 27 | PTS-R0011800 | Jandy Temperature Sensor | 177.99 |
| 28 | PTS-10444900 | Jandy Thermostat Sleeve | 4.99 |
| 29 | PTS-R0456600 | Jandy Gasket, Temperature Control Bulb, Model All, LRZM & LRZM | 4.99 |
| 30 | PTS-R0010700 | Jandy Thermostat Knob Replacement Kit | 9.99 |
| 32 | PTS-R0318800 | Jandy Mechanical Temperature Control Replacement Kit | 333.99 |
| 33 | PTS-S0069800 | Jandy Temperature Control Bezel | 60.99 |
| 38 | PTS-R0013200 | Jandy Water pressure switch only kit | 137.99 |
| 38 | PTS-R0015500 | Jandy Pressure Switch, 1-10 PSI, Model All, LRZE And LRZM | 157.99 |
| 39 | PTS-R0057800 | Jandy Siphon Loop Assembly | 126.99 |
| 41 | PTS-R0023200 | Jandy High-limit Switch Assembly Replacement Kit | 146.99 |
| 42 | PTS-R0022700 | Jandy High-limit Switch 135Degree F | 70.99 |
| 43 | PTS-R0023000 | Jandy High-Limit Switch,150Degree F Replacement Kit Model All, LRZE and LRZM Model All, LRZE And LRZM | 68.99 |
| 45/47 | PTS-10419300 | Jandy High Limit Switch Harness LG, CE, Replacement Kit | 133.99 |
| 48 | PTS-R0012200 | Jandy Fusible Link Assembly, Replacement Kit Model All, LRZE/LRZM | 16.99 |
| 50 | PTS-R0097800 | Jandy Terminal Block Replacement Kit | 21.99 |
| 51 | PTS-R0317500 | Jandy Ignition Control Assembly | 791.99 |
| 52 | PTS-R0408100 | Jandy Ingition Control Replacement Kit | 872.99 |
| 54 | PTS-R0061100 | Jandy Transformer, Model All, LRZE Replacement Kit | 111.99 |
| 56 | PTS-10480000 | Jandy In-Line Fuse Assembly | 22.99 |
| 64 | PTS-10561404 | Jandy Draft Hood 325 | 290.99 |
| NS | PTS-R0449705 | Jandy Adaptor plate, 400 | 48.99 |
| 68 | PTS-R0056400 | Jandy Inlet/Outlet Header, 2" | 987.99 |
| 68 | PTS-R0016800 | Jandy Header, In/Out,Bronze 2" | 1257.99 |
| 70 | PTS-R0057000 | Jandy Header Bolt Kit | 56.99 |
| 74 | PTS-R0050800 | Jandy Header Gasket Set of 18 | 41.99 |
| 75 | PTS-R0055000 | Jandy Flange and Gasket Assembly | 358.99 |
| 76 | PTS-10573500 | Jandy Flange, 2" | 110.99 |
| 77 | PTS-S0078000 | Jandy Flange Gasket, 2" | 36.99 |
| 78 | PTS-S0078200 | Jandy Flange Sleeve, 2" | 11.99 |
| 79 | PTS-R0461500 | Jandy Flange And Gasket Kit, Bronze, Model All, LRZE And LRZM | 358.99 |
| 80 | PTS-S0078100 | Jandy Gasket, Adapter, 2"X1 1/2" | 9.99 |
| 81 | PTS-R0316300 | Jandy Grommet Kit | 11.99 |
| 82 | PTS-R0460300 | Jandy Grommet, Seal 2" Replacement Kit | 5.99 |
| 84 | PTS-P0026800 | Jandy Pipe Plug 1/4" NPT | 8.99 |
| 86 | PTS-P0027000 | Jandy Pipe Plug 0.75" NPT | 20.99 |
| 87/90 | PTS-R0054900 | Jandy Bypass Assembly, 2" | 58.99 |
| 89 | PTS-R0011500 | Jandy Bypass Valve Disc | 7.99 |
| 91 | PTS-S0079900 | Jandy By Pass Spring, 2" Header, 125 Purple | 19.99 |
| 91 | PTS-S0061400 | Jandy By-pass Spring, White | 18.99 |
| 91 | PTS-S0061300 | Jandy By-pass Spring, Red | 18.99 |
| 91 | PTS-S0070100 | Jandy By Pass Spring, Black, 400 | 10.99 |
| 92 | PTS-R0011400 | Jandy Gasket, Flow Control Replacement Kit | 6.99 |
| 93 | PTS-R0018101 | Jandy Heat Exchanger Tube Assembly, 125 | 1144.99 |
| 93 | PTS-R0018102 | Jandy Heat Exchanger Tube Assembly, 175 | 1369.99 |
| 93 | PTS-R0018103 | Jandy Heat Exchanger Tube Assembly, 250 | 1603.99 |
| 93 | PTS-R0018104 | Jandy Heat Exchanger Tube Assembly, 325 | 1843.99 |
| 93 | PTS-R0018105 | Jandy Heat Exchanger Tube Assembly, 400 | 2067.99 |
| 94 | PTS-10697401 | Jandy Baffle Heat Exchanger 125 8 Required | 3.99 |
| 94 | PTS-10697402 | Jandy Baffle Heat Exchanger 175 8 Required | 3.99 |
| 94 | PTS-10697403 | Jandy Baffle Heat Exchanger 250 8 Required | 3.99 |
| 94 | PTS-10697404 | Jandy Heat Exchange Baffle, 325 (8 Required) | 3.99 |
| PTS-10697405 | Jandy Baffle Heat Exchanger 400 8 Required | 3.99 | |
| PTS-S0083900 | Jandy Baffle Retainer Clip | 28.99 | |
| PTS-R0040400 | Jandy Press Relief Valve Kit, 75 PSI Bronze Model All, LRZE And LRZM | 66.99 |
A consolidated list of the replacement parts for the Jandy/Zodiac Lite2 LG, LD Pool/Spa Heater (Discontinued, 2003 - 2009). If you're having trouble finding the parts you need, feel free to reach out to one of our representatives in the contact section below.
