Jandy/Zodiac - Heat Pump Parts - JE Heat Pump (2013-Present)

SELECT YOUR PART BELOW

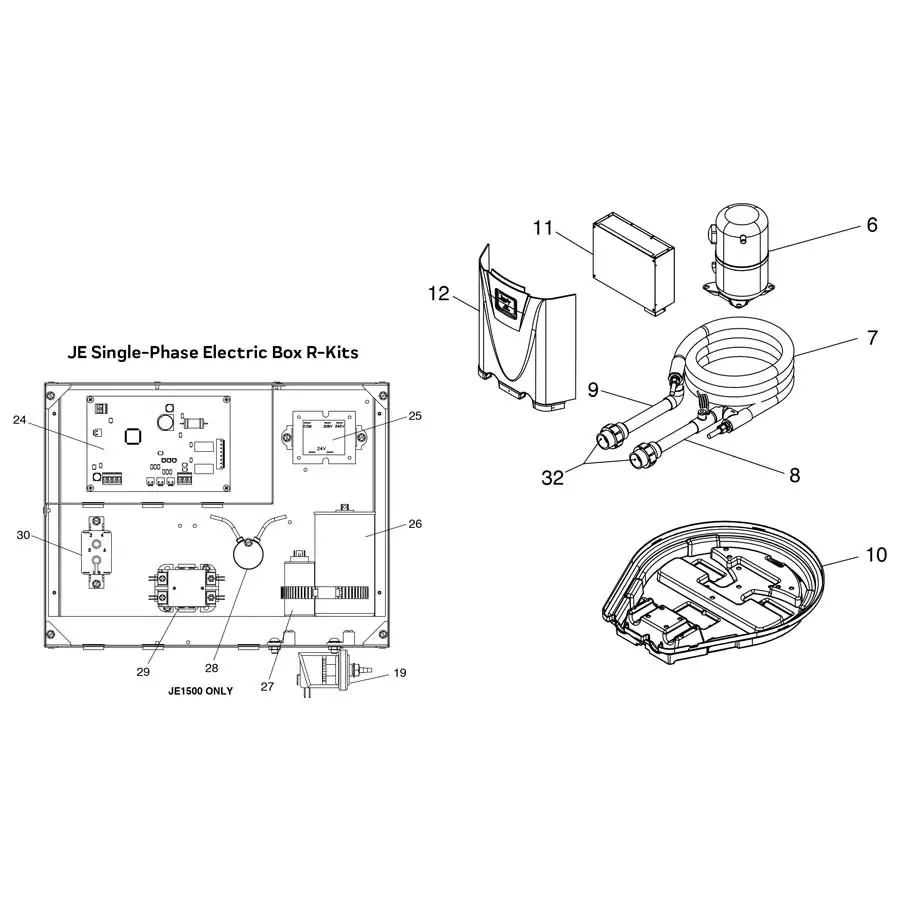

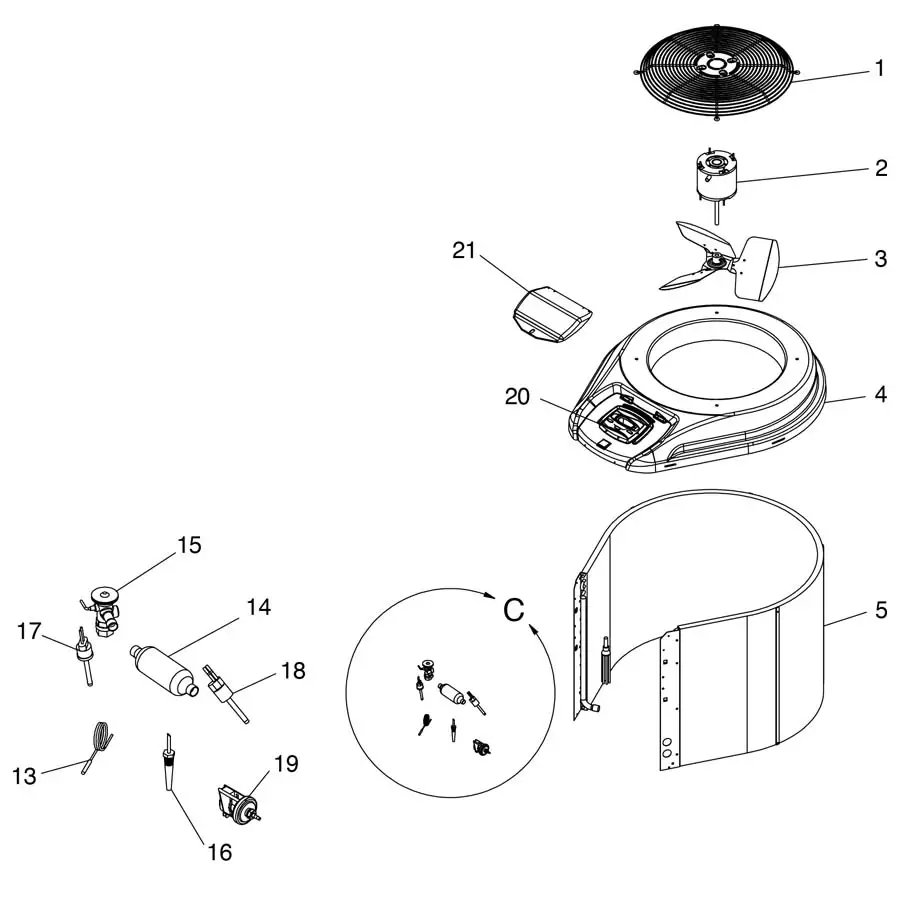

Below you'll find the consolidated list of replacement parts for the Jandy/Zodiac JE Heat Pump (2013-Present) and the associated models JE1500T-JE3000T.

Select A SKU To See Inventory

Please Note: Products might not be available at all locations.

Jandy/Zodiac - Heat Pump Parts - JE Heat Pump (2013-Present)

  KeySKU / Part #NamePrice
  1PTS-R0571700Jandy Fan Grille,1500209.99
  1PTS-R0571800Jandy Fan Grille, 2000, 2500, 3000213.99
  2PTS-R0571900Jandy Fan Motor, 1500626.99
  2PTS-R0572000Jandy Fan Motor, 2000, 2500, 3000573.99
  3PTS-R0572100Jandy Fan Blade, 1500233.99
  3PTS-R0572200Jandy Fan Blade , 2000, 25000, 3000260.99
  4PTS-R0572300Jandy Fan Top, 1500711.99
  4PTS-R0572400Jandy Fan Top, 2000, 2500, 3000741.99
  5PTS-R0572500Jandy Evaporator, Coil/Guard, 15001562.99
  5PTS-R0572600Jandy Evaporator, Coil/Guard, 2000, 25001972.99
  5PTS-R0572700Jandy Evaporator, Coil/Guard, 30002795.99
  6PTS-R0572800Jandy Compressor, 1500, 20001837.99
  6PTS-R0572900Jandy Compressor, 20002069.99
  6PTS-R0573000Jandy Compressor, 25002286.99
  6PTS-R0573100Jandy Compressor, 30002556.99
  6PTS-R0577500Jandy Compressor, (3 Phase), 25003172.99
  6PTS-R0577600Jandy Compressor, 3000, 3 Phase3617.99
  7PTS-R0577700Jandy Condenser, 15001431.99
  7PTS-R0577800Jandy Condenser, 20002241.99
  7PTS-R0577900Jandy Condenser, 25002367.99
  7PTS-R0578000Jandy Condenser, 30002621.99
  8PTS-R0573200Jandy Water Manifold Inlet,1500157.99
  8PTS-R0573300Jandy Water Manifold Inlet, 2000, 2500175.99
  8PTS-R0573400Jandy Water Manifold Inlet, 3000178.99
  9PTS-R0573500Jandy Water Manifold Outlet, 150078.99
  9PTS-R0573600Jandy Water Manifold Outlet, 2000, 2500128.99
  9PTS-R0573700Jandy Water Manifold Outlet, 3000132.99
  10PTS-R0573800Jandy Base, 1500611.99
  10PTS-R0573900Jandy Base, 2000, 2500, 3000639.99
  11PTS-R0574000Jandy Electrical Box Cover With Hardware , 1500797.99
  12PTS-R0574300Jandy Front Panel, 1500385.99
  12PTS-R0574400Jandy Front Panel, 2000, 2500410.99
  12PTS-R0574500Jandy Front Panel, 3000410.99
  13PTS-7790Jandy Air/Water/Solar Temp Sendor Kit, 15'166.99
  14PTS-R0574700Jandy Filter Drier, 150070.99
  14PTS-R0574800Jandy Filter Drier , 2000, 2500, 300082.99
  14PTS-R0574900Jandy Filter Drier (Bi-Flow) , 3000TR173.99
  15PTS-R0575000Jandy Thermal Expansion Valve , 1500336.99
  15PTS-R0575100Jandy Thermal Expansion Valve, 2000, 2500404.99
  15PTS-R0575200Jandy Thermal Expansion Valve, 3000531.99
  16PTS-R0575300Jandy Air Temperature Sensor , All54.99
  17PTS-R0575400Jandy High Pressure Switch, All66.99
  18PTS-R0575500Jandy Low Pressure Switch, All66.99
  19PTS-R0575600Jandy Water Pressure Switch, All65.99
  20PTS-R3008800Jandy Universal Controller Replacement Kit729.99
  22PTS-R0575900Jandy Reversing Valve (Optional), 3000TR353.99
  23PTS-R0576000Jandy Winterizing Drain Kit, 2000, 2500, 300045.99
  24PTS-R3009200Jandy Power Interface PCB Replacement Kit592.99
  25PTS-R0576200Jandy Transformer, All65.99
  26PTS-R0576300Jandy Run Capacitor (1 Phase) , 150056.99
  26PTS-R0576400Jandy Run Capacitor, (1 Phase), 2000, 2500, 300061.99
  27PTS-R0576500Jandy Fan Capacitor, 150024.99
  27PTS-R0576600Jandy Fan Capacitor , 2000, 2500, 300024.99
  28PTS-R0576700Jandy Hard Start Capacitor, 1500 Only76.99
  29PTS-R0576800Jandy Contactor, (1 Phase), All75.99
  29PTS-R0576900Jandy Contactor ( 3 Phase) , 2500, 3000196.99
  30PTS-R0577000Jandy Fan Relay, All , All45.99
  31PTS-R0577100Jandy Phase Rotation Monitor (3 Phase Only), 2500, 3000163.99
  32PTS-R0472700Jandy Universal Union And Buttress Set117.99
  NSPTS-R0577200Jandy Anchor Bracket Set, 150035.99
  NSPTS-R0577300Jandy Anchor Bracket Set , 2000, 2500, 300038.99
  NSPTS-R0578900Jandy Bypass, External JE Heat Pump , All403.99
  21PTS-R3000601Jandy Control Cover, Smoked194.99

Consolidated list of the replacement parts for a Jandy/Zodiac JE Heat Pump (2013-Present). If you're having difficulty finding the part you need, please reach out to one of our representatives in the contact section below.
